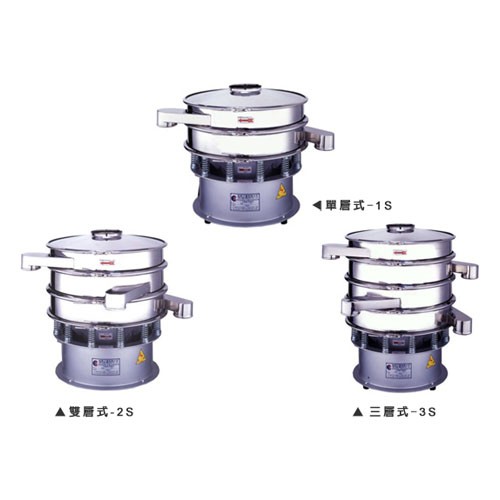

Single-layer -1S Vibration Screening Filter Machine
Features:
Customizable specifications to meet special screening needs of customers, such as raised type, mobile type, gate type, liquid-specific type, etc.
Uses:
Suitable for a variety of products: powders, granules, flakes, liquids, etc. Used in industries such as pharmaceuticals, food, chemicals, electronics, plastic powders and pellets, feed, etc.
Materials:
Standard upper body is made of refined SUS-304# stainless steel, and the lower base is made of SS-41 steel with multiple layers of rust-proof treatment.
Full stainless steel SUS-304# pickling or polishing can be customized according to customer requirements.
(m/m)
| (Model) | (HP) | (m/m) | L×W×H(m/m) | Number of sieve layers | (KG) |
| CK-500-1S | 3/4 | ψ470 | 760×520×710 | 1 | 78 |
| CK-600-1S | 3/4 | ψ560 | 850×640×710 | 93 |
| CK-800-1S | 1 | ψ750 | 1140×820×870 | 175 |
| CK-1000-1S | 2 | ψ950 | 1460×1020×885 | 287 |
| CK-1200-1S | 2 | ψ1150 | 1530×1220×970 | 385 |
| CK-1500-1S | 3 | ψ1430 | 1890×1520×1100 | 638 |
| CK-1800-1S | 3 | ψ1750 | 2450×1840×1230 | 842 |
(m/m)
| (Model) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | A | B | C | D | E | F | G |
| CK-500-1S | 165 | 500 | 525 | 340 | 100 | 400 | 525 | 650 | 710 |
|
| 60 | 760 | 540 |
|
|
|
|
| CK-600-1S | 165 | 600 | 525 | 374 | 100 | 385 | 515 | 640 | 705 |
|
| 65 | 850 | 640 |
|
|
|
|
| CK-800-1S | 216 | 780 | 560 | 515 | 130 | 410 | 570 | 715 | 795 |
|
| 75 | 1135 | 820 |
|
|
|
|
| CK-1000-1S | 216 | 980 | 700 | 650 | 160 | 460 | 650 | 810 | 900 |
|
| 90 | 1380 | 920 |
|
|
|
|
| CK-1200-1S | 267 | 1183 | 860 | 740 | 190 | 560 | 750 | 940 | 1140 |
|
| 100 | 1630 | 1250 |
|
|
|
|
| CK-1500-1S | 267 | 1463 | 970 | 920 | 220 | 560 | 780 | 980 | 1090 |
|
| 110 | 2050 | 1510 |
|
|
|
|
| CK-1800-1S | 267 | 1750 | 1325 | 1010 | 265 | 670 | 900 | 1100 | 1230 |
|
| 120 | 2450 | 1840 |
|
|
|
|
